Engineering Overview: Industrial SS Pipe Fittings
Shrushti Metal is an ISO 9001:2015 certified manufacturer and stockist of Stainless Steel Pipe Fittings in Kumbharwada, Mumbai. We supply ASME B16.9 buttweld fittings and ASME B16.11 forged socket weld and threaded fittings for oil refineries, chemical plants, pharmaceutical lines, marine platforms, and high-pressure steam headers.
Our fittings ensure leak-free fluid conveyance, high corrosion resistance, and structural strength under thermal shock and pressure cycles. Sourced from certified raw materials, every fitting guarantees exact dimensions and smooth weldability. Located at 1st Kumbharwada, our central Mumbai warehouse maintains extensive ready inventory for immediate project dispatches across Pan-India and global export destinations.
Technical Specifications & Standards Matrix
Every fitting meets rigorous international dimensional, pressure, and testing standards:
| Fitting Types | Buttweld (Seamless & Welded), Forged Socket Weld, and Screwed Threaded Fittings |
|---|---|
| Size Range | 1/8" NB to 48" NB |
| Wall Thickness | Sch 5S, 10S, 40S, 80S, 160, XS, and XXS per ASME B36.19 |
| Pressure Ratings | Class 2000#, 3000#, 6000#, and 9000# for forged; schedule-matched for buttweld |
| Thread Specs | NPT (ASME B1.20.1), BSPT (ISO 7/1), BSPP (ISO 228/1) |
| Standards | ASME B16.9, ASME B16.11, MSS-SP-43, ASTM A403, ASTM A182 |
| Certification | ISO 9001:2015, CE Marking, and EN 10204 3.1 MTR |
Material Metallurgy & Chemical Resistance
Selecting the right stainless steel alloy ensures lasting, dependable corrosion resistance across demanding industrial pipelines:
| Material Grade | Key Characteristics | Recommended Industrial Use |
|---|---|---|
| SS 304 / 304L | Classic 18/8 austenitic stainless steel with excellent formability and general corrosion resistance. | Food processing, sanitary water piping, and general industrial lines. |
| SS 316 / 316L | Formulated with 2-3% Molybdenum for superior resistance against chlorides and pitting. | Marine environments, chemical reactors, and offshore process piping. |
| SS 321 / 321H | Titanium-stabilized alloy preventing chromium carbide precipitation during welding up to 870°C. | High-temperature exhaust manifolds, boilers, and petrochemical lines. |
| SS 904L & Duplex | High-performance alloys with extreme resistance to sulfuric acids and stress corrosion. | Phosphoric acid plants, desalination units, and severe chemical scrubbers. |
Core Configurations in Ready Stock
Our warehouse maintains ex-stock across standard configurations:
90° & 45° Elbows
Long and short radius buttweld elbows for smooth directional flow.

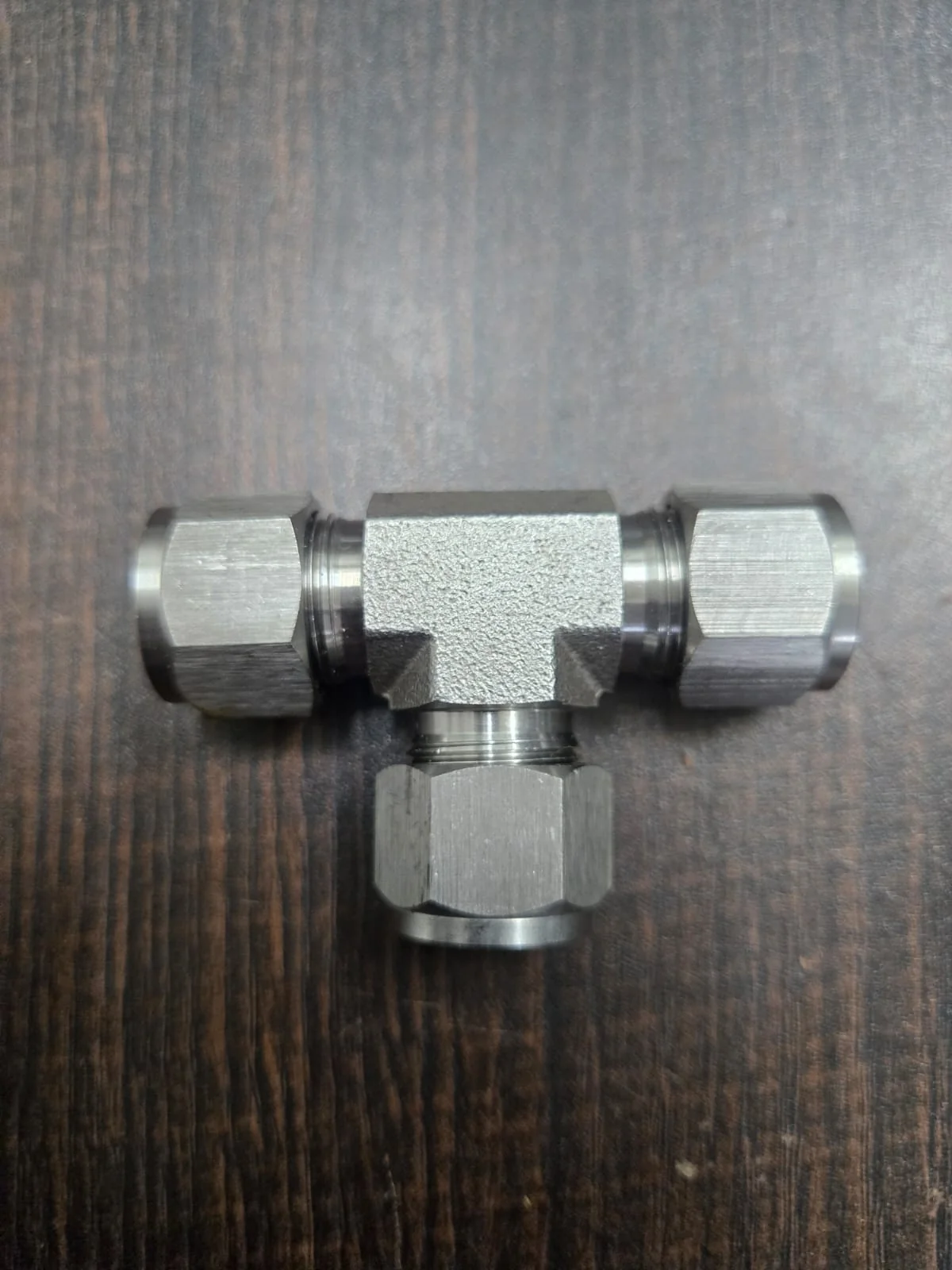

Equal & Reducing Tees
Precision tees for balanced fluid distribution across branches.

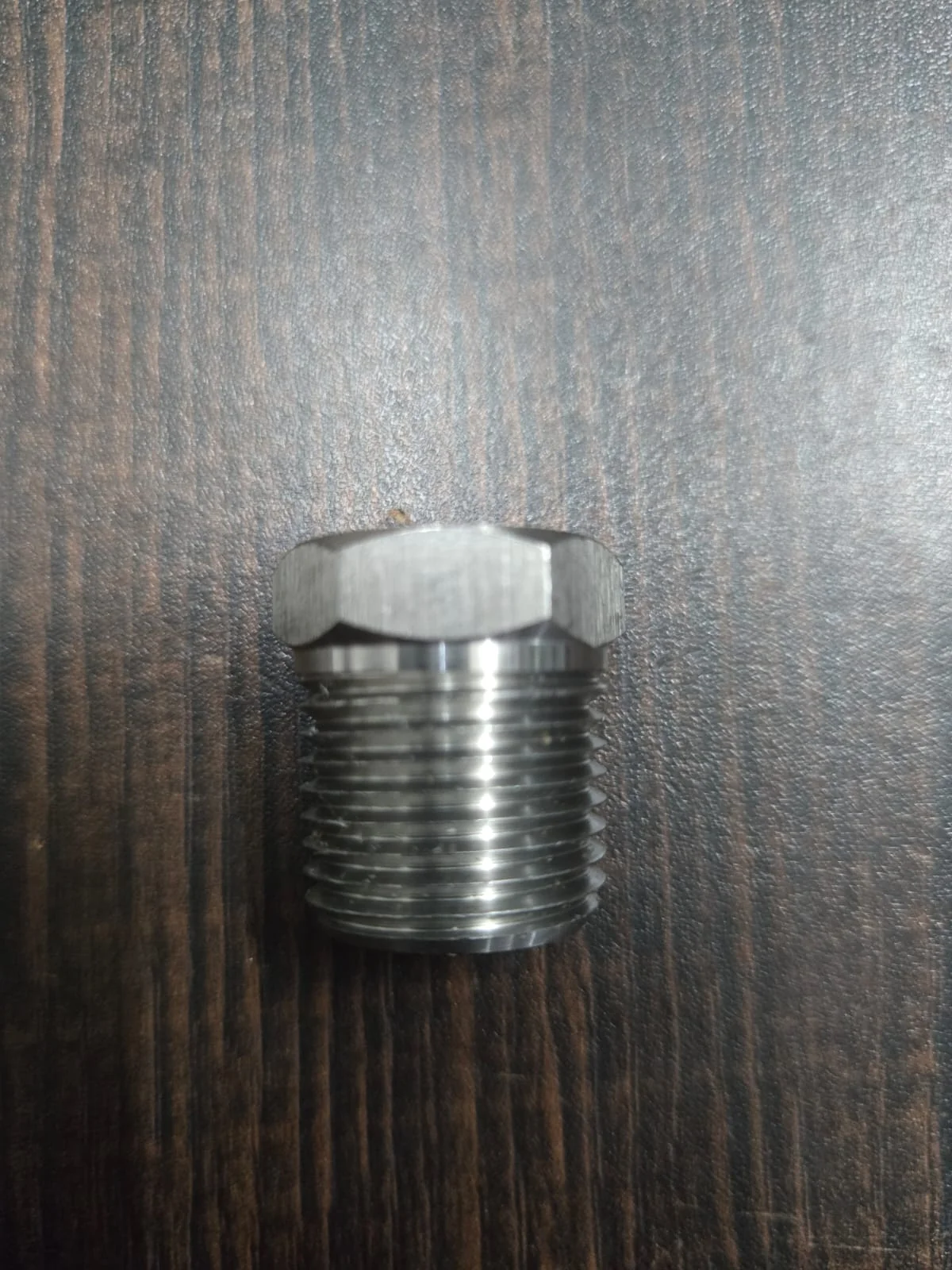

Reducers
Concentric and eccentric reducers for smooth diameter transitions.

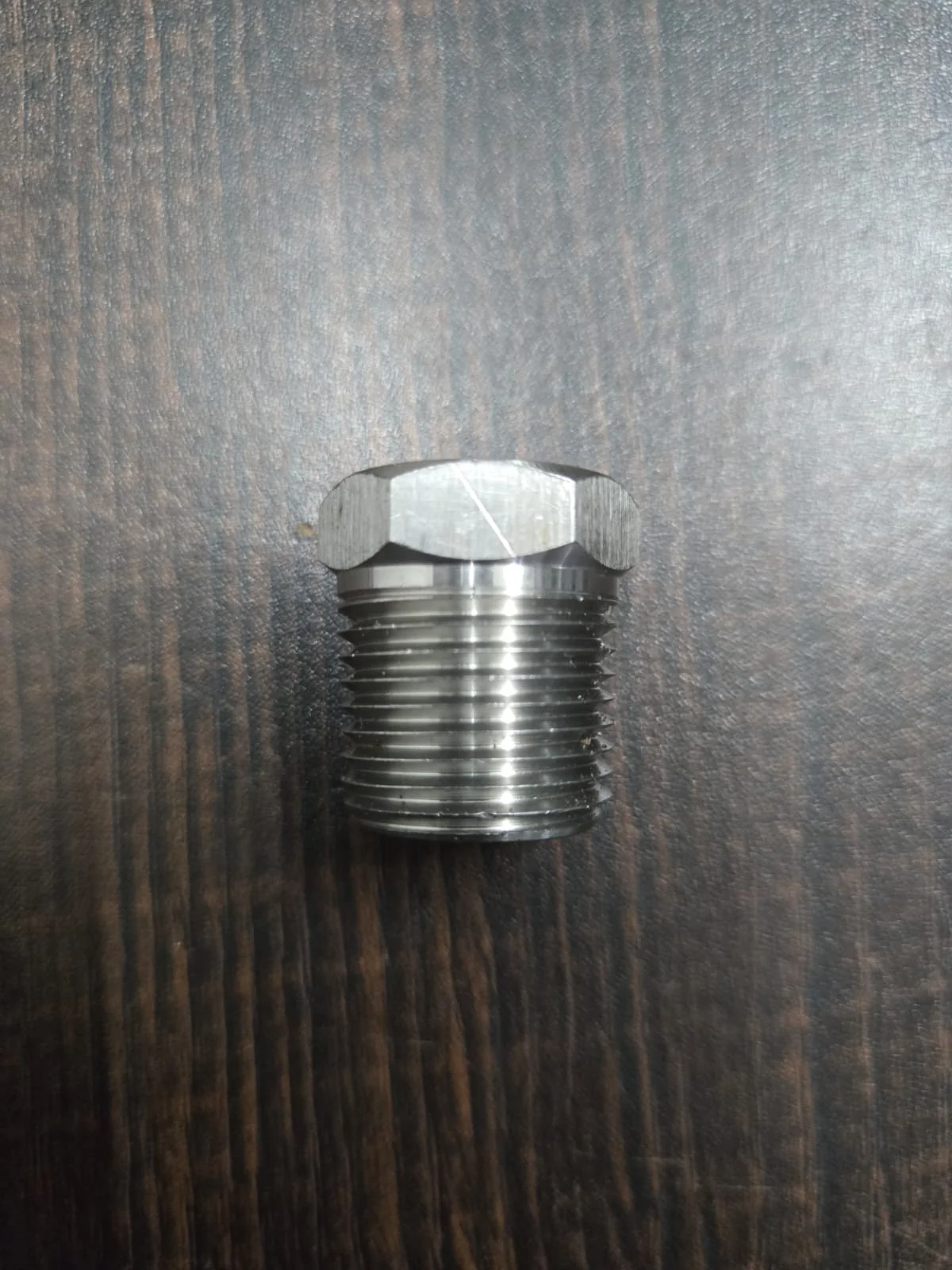

Caps & Stub Ends
Leak-tight pipe closures and lap-joint flange connections.

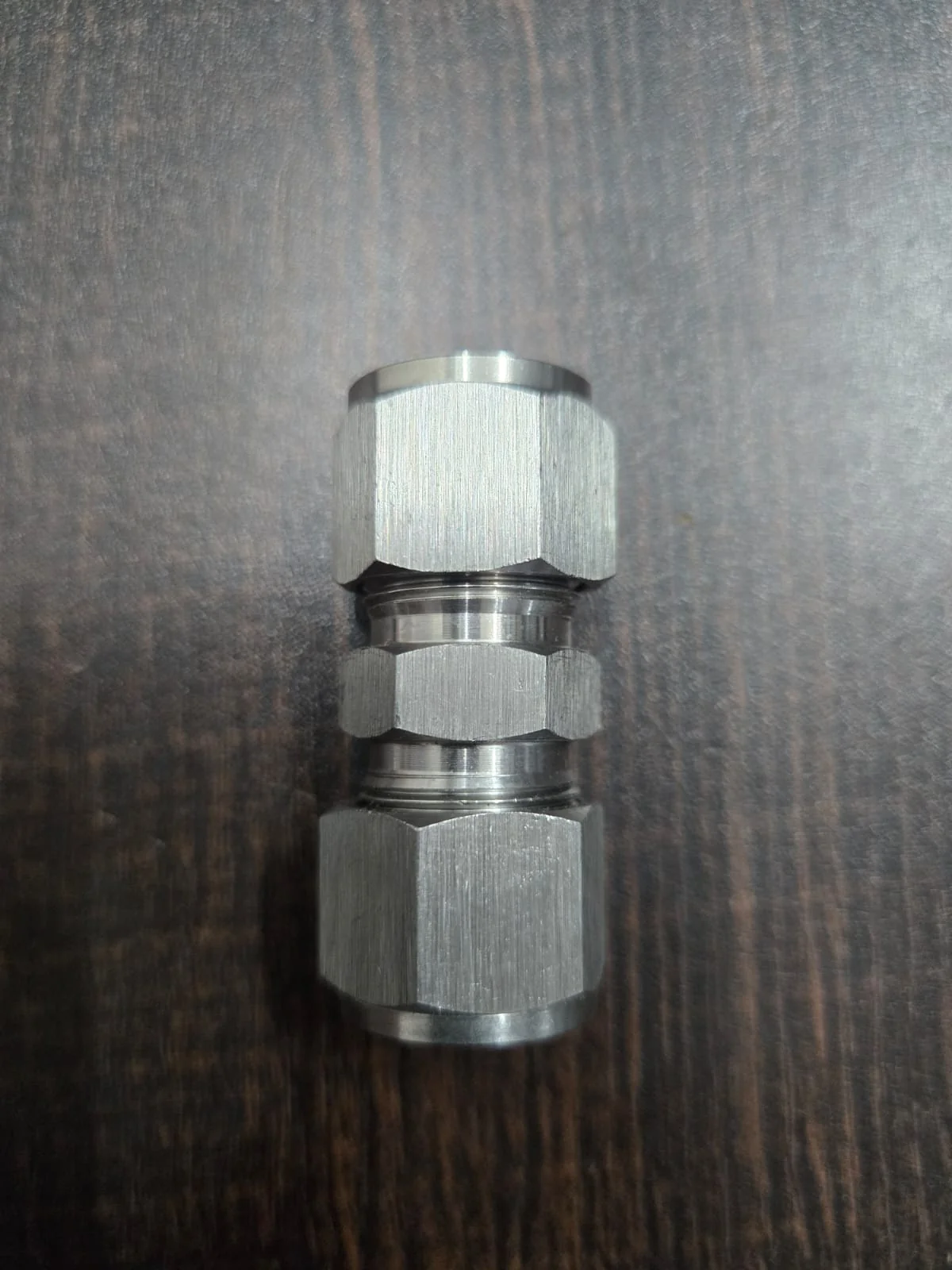

Forged Unions
Class 3000# and 6000# socket weld and screwed unions for high pressure.

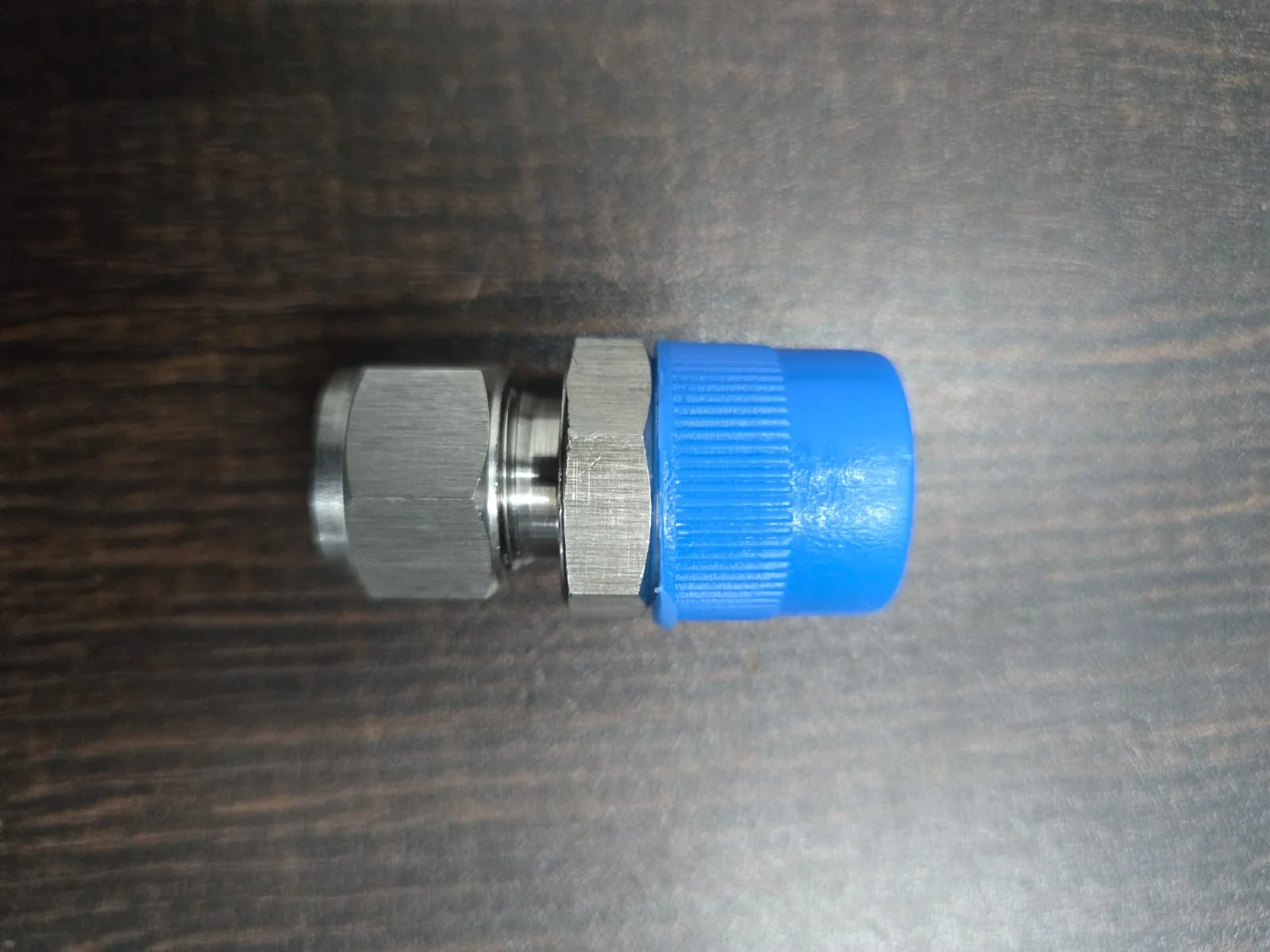

Hex Nipples & Couplings
CNC-machined threaded fittings for valve and line connections.
Quality Assurance & Express Dispatch
Every batch undergoes strict verification:
- 100% Positive Material Identification (PMI) testing.
- Hydrostatic proof testing and dimensional verification per ASME standards.
- Certified EN 10204 3.1 MTR issued with full heat traceability.
- Third-party inspection by Lloyd's Register, TUV, Bureau Veritas, and L&T.
- Fast 24 to 48-hour transit to Chennai, Bengaluru, Hyderabad, and major hubs.
