Engineering Overview: Precision Tube-to-Pipe Adapter Technology

Shrushti Metal is an ISO 9001:2015 certified manufacturer and stockist of high-integrity Instrumentation Tube Adapters in Kumbharwada, Mumbai. Engineered for critical chemical, hydraulic, gas, and instrumentation lines, our adapters provide leak-tight transitions between double ferrule tube fittings and threaded pipe ports.

Using tube adapters eliminates alignment stress and potential leak points. With a machined tube stub seated directly into a compression body, engineers can orient valves and gauges in any radial direction before tightening.

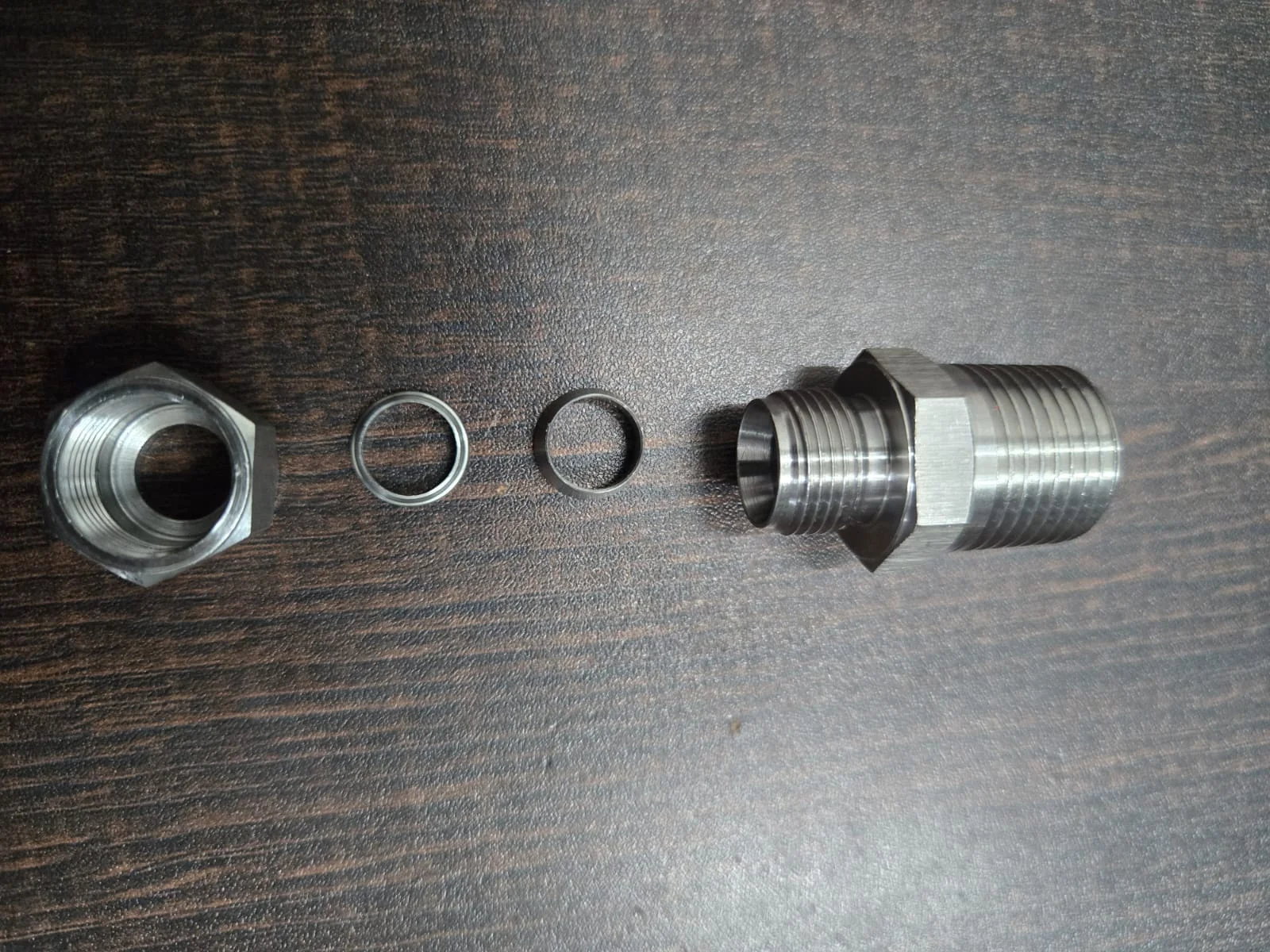

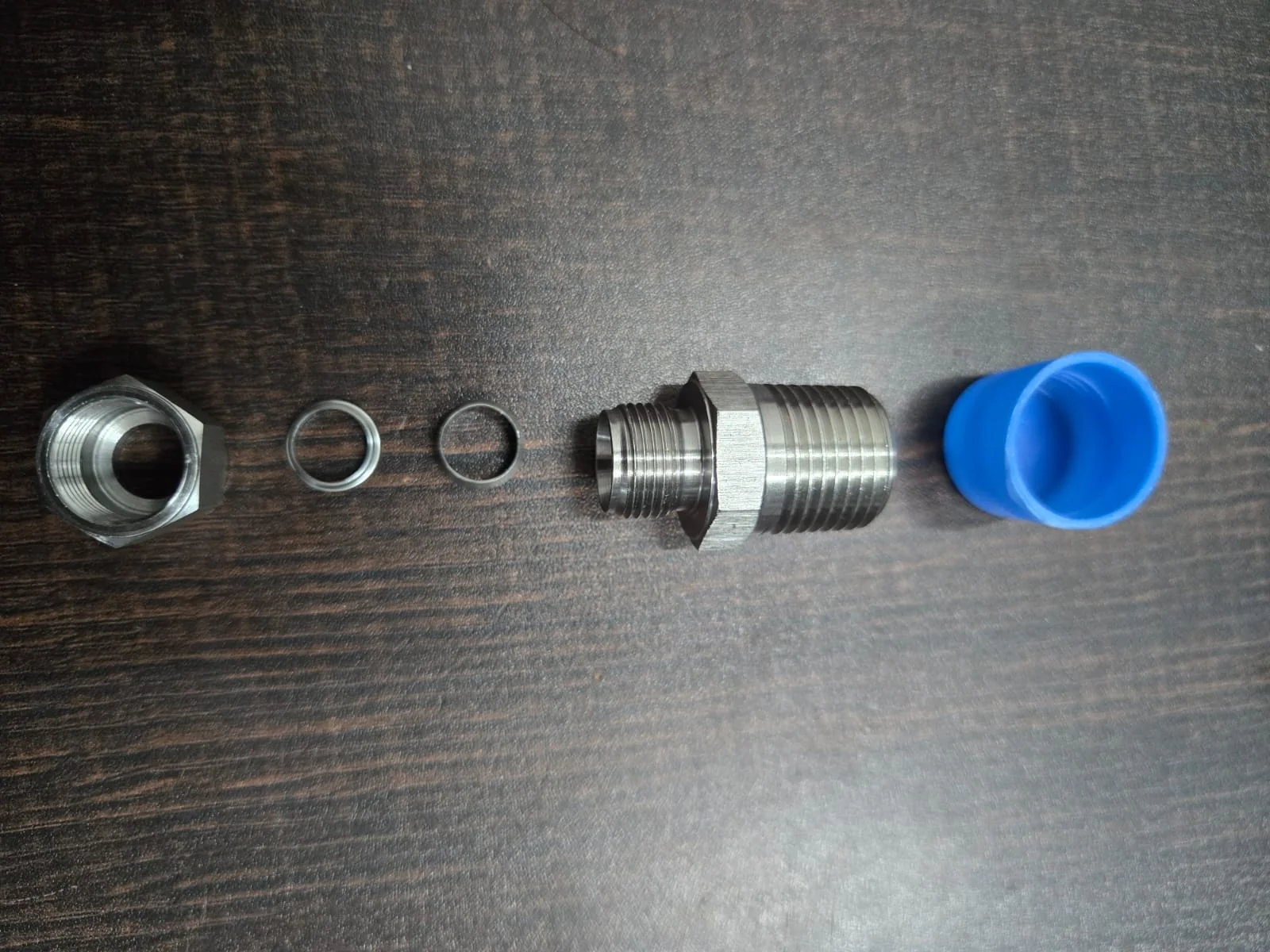

Male Tube Adapter Exploded View - Tube Stub, Nut, Ferrules and Threaded Body

Figure 1: Exploded View of Shrushti Metal Male Tube Adapter — Compression Nut, Ferrules, and Threaded Body.

Technical Specifications & Standards Matrix

Every Shrushti Metal tube adapter is precision CNC-machined to strict dimensional tolerances, ensuring seamless interchangeability with worldwide instrumentation standards.

Fitting Type Tube Stub to Pipe Thread Adapters (Male, Female & Port Connectors)
Fractional Sizes 1/16", 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" OD
Metric Sizes 3mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 32mm, 38mm OD
Thread Standards NPT (ASME B1.20.1), BSPT (ISO 7/1), BSPP (ISO 228/1), Unified SAE
Pressure Ratings Up to 10,000 PSI (689 bar) cold working pressure
Design Standards ASME B31.3, BS 4368, MSS-SP-99, ASTM A276, ASTM A479

Material Metallurgy & Chemical Resistance

Machined from cold-finished stainless steel and high-nickel bar stocks to guarantee mechanical strength and corrosion resistance:

SS 316 / SS 316L

Benchmark with 2.0–3.0% Molybdenum resisting pitting, crevice corrosion, and acidic process fluids.

SS 304 / SS 304L

High-tensile material for industrial hydraulics, pneumatic utilities, and food processing.

Super Duplex 2507

High-strength alloy for sour gas oilfields (NACE MR0175), marine, and chemical lines.

Alloy 400 / Inconel 625

Built for caustic media, seawater desalination, and extreme thermal cycling.

Core Configurations in Ready Stock

Complete range of configurations available for direct installation:

  • M

    Male Tube Adapter

    Tube stub to male NPT/BSPT thread. Connects compression fittings to female equipment ports without twisting tubing.

  • F

    Female Tube Adapter

    Tube stub to female NPT/BSPT thread. Transitions male valves and instruments directly into tubing runs.

  • P

    Port Connector & Reducer

    Double-ended stubs to connect adjacent fittings directly, and reducing adapters for dissimilar line sizes.

Inventory Note: All adapter configurations feature precision machined wrench flats for effortless installation and repeatable field service.

Quality Assurance & Express Dispatch

Shrushti Metal tube adapters are 100% mechanically interchangeable with Swagelok and Parker A-LOK. Consignments include EN 10204 Type 3.1 MTRs with full heat traceability and hydrostatic testing. Standard sizes ship within 24 hours.

Interchangeability: Our adapters fit seamlessly into existing Swagelok and Parker systems, passing third-party inspections by TUV, Bureau Veritas, and L&T.

Major Cities We Supply To (South India & Pan-India)

Direct express dispatch from our Kumbharwada, Mumbai warehouse to all major industrial corridors:

📍 Chennai
📍 Bengaluru
📍 Hyderabad
📍 Coimbatore
📍 Kochi
📍 Visakhapatnam
📍 Ahmedabad
📍 Pune
📍 Vadodara
📍 Kolkata
📍 Surat
📍 Mumbai

Frequently Asked Questions (FAQ)

Why use a tube adapter instead of a standard male connector?
Tube adapters eliminate alignment problems when connecting tubing to threaded ports. Because the tube stub rotates freely prior to tightening the compression nut, valves and gauges can be positioned perfectly without overtightening or damaging tapered threads.
Are Shrushti Metal tube adapters interchangeable with Swagelok and Parker?
Yes. Precision CNC tolerances guarantee 100% mechanical interchangeability and intermixability with Swagelok, Parker A-LOK, and other major instrumentation brands.
What test certificates are provided with every order?
Every shipment is accompanied by an authentic Manufacturer Test Certificate per EN 10204 Type 3.1, detailing chemical composition, tensile properties, and hydrostatic pressure testing.
How fast can Shrushti Metal dispatch orders across India?
Standard fractional and metric sizes in SS 316 and SS 304 are dispatched from our Mumbai warehouse within 24 hours of purchase order receipt.
